Description

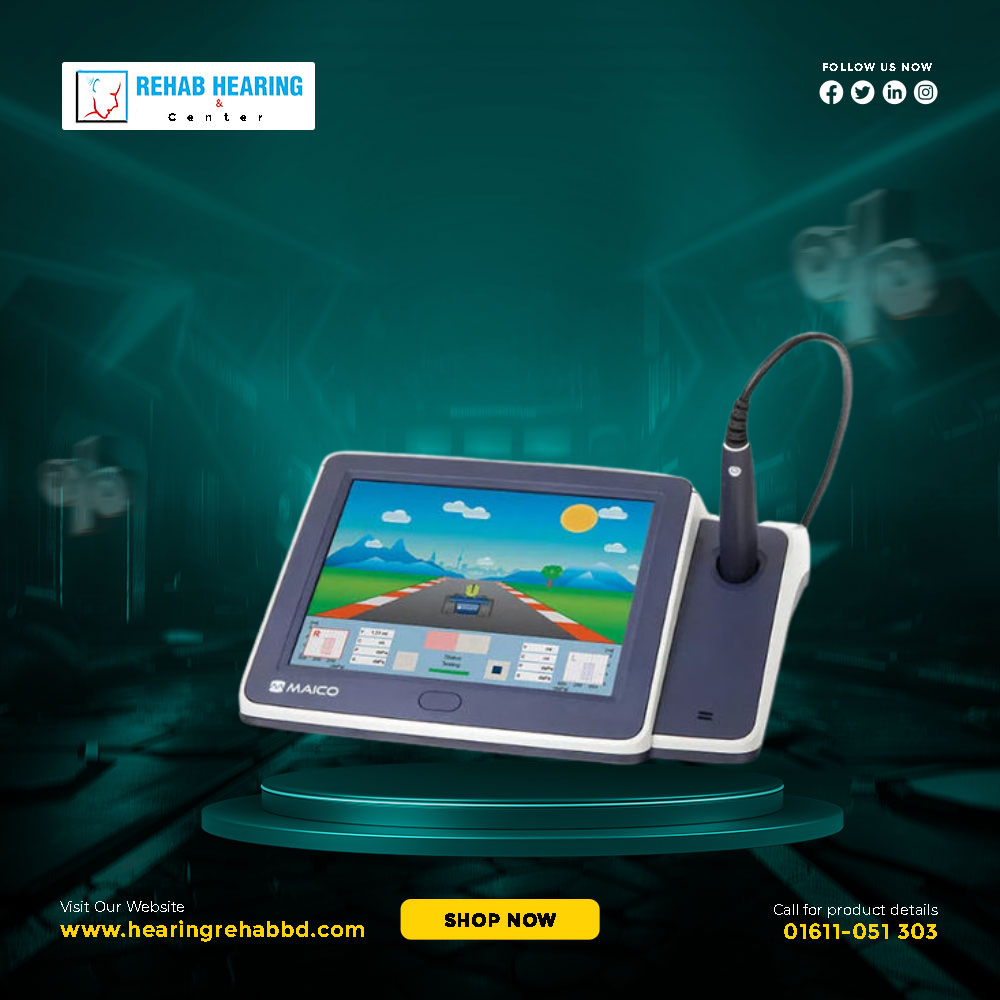

Tympanometers – TouchTymp RaceCar
The TouchTymp RaceCar is a state-of-the-art pediatric tympanometer designed to make middle ear assessment quick, accurate, and child-friendly. Its engaging animated race car interface helps keep children focused during tympanometry and reflex screening, reducing movement and improving test reliability.
Built with an intuitive full touch-screen system, it offers fast operation and seamless workflow for clinicians. The integrated thermal printer provides instant result output, while customizable protocols ensure flexibility for different clinical needs.
Key Features:
- Interactive RaceCar animation for improved pediatric cooperation
- Fast, accurate middle ear function analysis
- User-friendly full touch-screen interface
- Built-in thermal printer for instant reports
- Customizable test protocols and settings
- High-resolution display with smooth navigation
- Minimizes probe seal loss and repeat testing
- Portable and compact design for clinical convenience
Technical Specifications:
- Probe Frequency: 226 Hz ±1%, 85 dB SPL
- Optional High Frequency: 1000 Hz ±1%, 69 dB SPL
- Pressure Range: -600 to +400 daPa
- Volume Range: 0.0 to 6.0 ml (compensated)
- Compliance Range: 0.1 to 8.0 ml (226 Hz), 0.1 to 15.0 mmho (1000 Hz optional)
- Test Duration: approx. 3–5 seconds
- Pressure Accuracy: ±5% or ±10 daPa
- Volume Accuracy: ±5% or 0.1 ml
- Test Frequencies: 500 Hz, 1000 Hz, 2000 Hz, 4000 Hz
- Ipsilateral and optional contralateral reflex testing
- Reflex intensity: 70–105 dB HL (ipsilateral), up to 120 dB HL (contralateral)
- 10.4-inch graphic LED touchscreen display
- Lightweight handheld probe with indicator light and control switch
- USB PC connectivity
- Built-in fast thermal printer
- Power Supply: 100–240V AC
Clinical Benefits:
- Improves cooperation in pediatric patients
- Reduces test time for clinicians
- Ensures fast and reliable diagnostic results
- Enhances workflow efficiency in audiology practice
Applications:
- Pediatric hearing screening
- Middle ear assessment
- Tympanometry and acoustic reflex testing
- ENT clinics and audiology centers
The TouchTymp RaceCar combines advanced audiology technology with an engaging child-focused design, making pediatric middle ear testing faster, easier, and more comfortable for both clinicians and young patients.
