Description

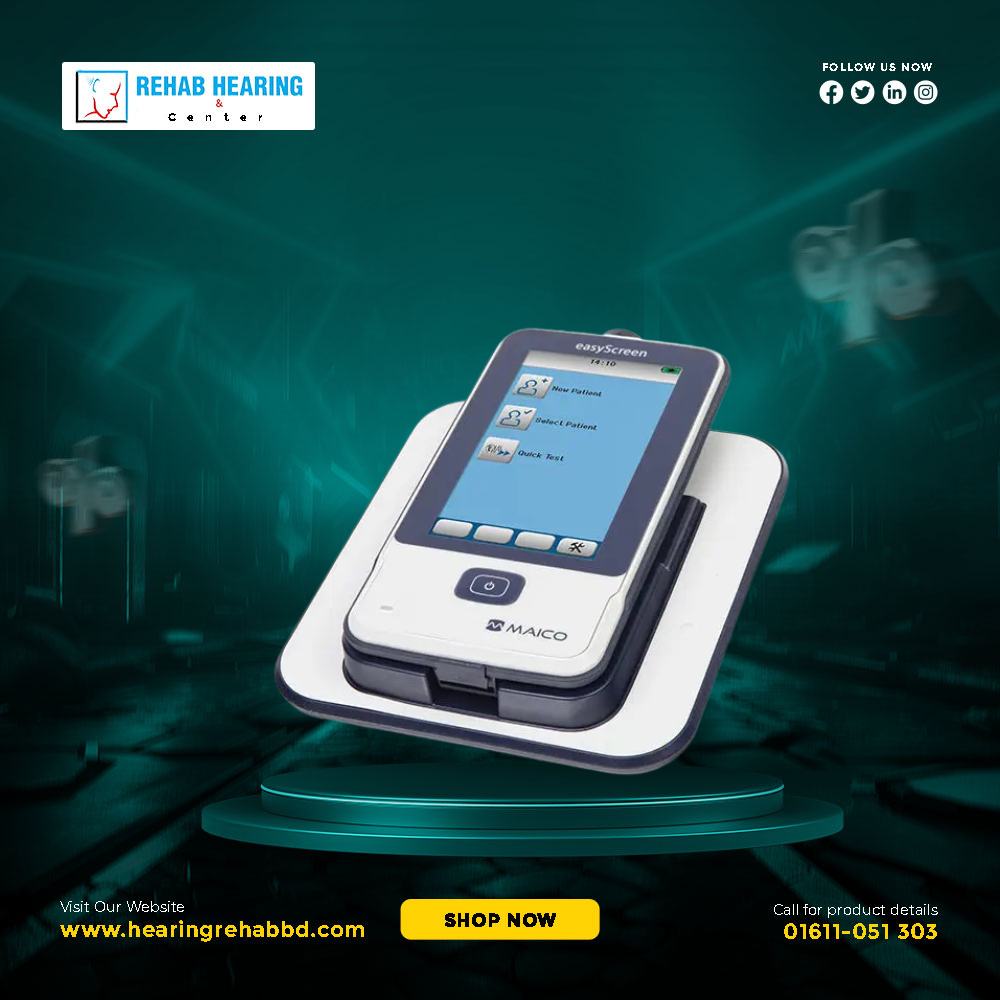

The ABR Easy Screen is a modern newborn and infant hearing screening device designed for fast, accurate, and reliable auditory assessment. It integrates ABR, TEOAE, and DPOAE technologies into a single compact system, making it an excellent choice for hospitals, clinics, and audiology centers. Its lightweight, pocket-sized design ensures easy portability and smooth workflow during screening sessions.
This advanced device uses CE-Chirp® stimulus technology for highly precise results and supports automated binaural screening, allowing both ears to be tested efficiently. A large color touchscreen with an intuitive interface makes operation simple, even for first-time users, while built-in on-screen guidance helps ensure correct usage throughout the process.
The ABR Easy Screen automatically detects background noise and improper probe placement, ensuring reliable results every time. It also includes HearSIM™ database support for efficient patient record management and device integration.
Key Features
- Fast and accurate ABR + OAE (TEOAE & DPOAE) hearing screening
- All-in-one system combining ABR, TEOAE, and DPOAE technologies
- CE-Chirp® stimulus for improved response precision
- Automated binaural testing for both ears
- Large 4.3-inch color touchscreen interface
- Lightweight, compact, and highly portable design
- Automatic detection of noise and probe issues
- HearSIM™ patient database & device management support
- Wireless charging cradle compatibility
- Fast boot-up with long-lasting rechargeable battery
- Suitable for newborn, infant, and pediatric screening
Technical Specifications
- Display: 4.3-inch color touch screen
- Dimensions: 163 × 85 × 21 mm
- Weight: 265 g
- Storage: Up to 250 patients (50 tests each)
- PC Interface: Micro USB
- Battery: Rechargeable Li-ion
- Stimulus Type: CE-Chirp®
- Stimulus Rate: ~90/s
- Test Mode: Monaural or binaural
- Intensity Level: 35 dB nHL
- Impedance Pre-test: Automatic
- Test Duration: 10–180 seconds (ABR)
- Artifact Rejection: 100 µV
- OAE Frequencies: 2, 3, 4, 5 kHz
- Level (L1/L2): 65/55 dB SPL
- F2/f1 Ratio: 1.22
- Pass Criteria: 3 of 4 bands with ≥6 dB SNR
- OAE Test Duration: 4–60 seconds
Applications
- Newborn hearing screening programs
- Infant hearing assessment
- Hospital maternity wards
- Audiology and ENT clinics
- Hearing care centers
The ABR Easy Screen delivers fast screening times, high accuracy, and a comfortable testing experience for both patients and clinicians.
