Description

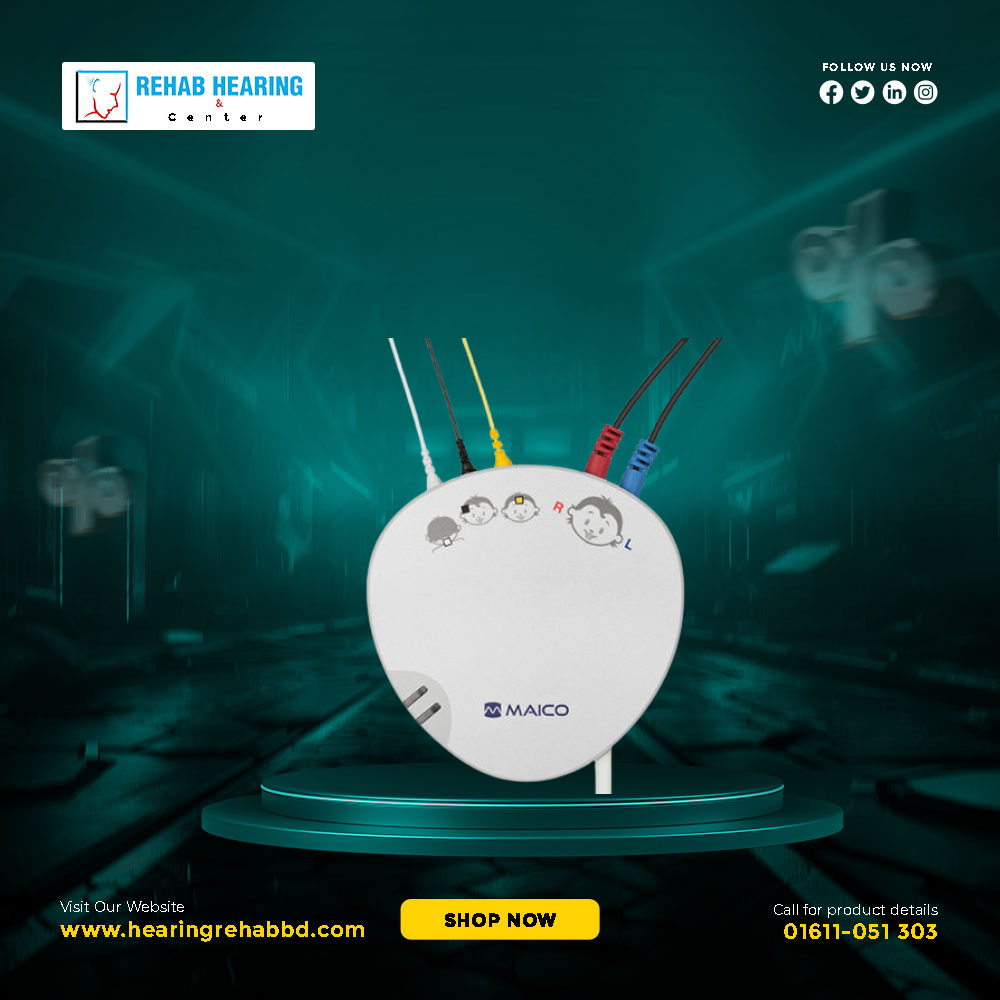

ABR MB 11 Classic
The ABR MB 11 Classic is a modern, fully automated binaural ABR (Auditory Brainstem Response) hearing screening system specially designed for newborns and infants. It ensures fast, accurate, and highly reliable hearing screening using advanced CE-Chirp® stimulus technology and a powerful ABR detection algorithm.
Key Features:
- Fully automated ABR hearing screening system
- Simultaneous binaural testing for both ears
- Advanced CE-Chirp® stimulus for faster and more precise responses
- Intelligent FSS algorithm delivering clear “PASS” or “REFER” results
- Automatic impedance check for optimal signal quality
- User-friendly PC software with step-by-step guided workflow
- Easy data export and reporting options
- Compatible with Sanibel Infant EarCups™ and disposable snap electrodes
- Compact, lightweight, and USB-powered design
Technical Specifications:
- Test Type: Automated Auditory Brainstem Response (ABR)
- Stimulus Type: CE-Chirp®
- Stimulus Intensity: 35 dB nHL
- Stimulus Rate: 93/s
- Sample Rate: 16 kHz
- Transducer: ER3A insert earphones
- Electrodes: Disposable snap electrodes
- Power Supply: USB connection
- Power Consumption: Max 400 mA
- Dimensions: 120 mm × 93 mm × 30 mm
- Weight: Approx. 142 g
The MB 11 Classic delivers highly efficient newborn hearing screening in under 3 minutes when responses are detected in both ears. With automatic impedance monitoring and intuitive software, it helps clinicians perform quick, accurate, and stress-free screening with minimal setup time.
Ideal for hospitals, audiology clinics, and newborn hearing screening programs.
