Audiometers MA 41

Additional information

Description

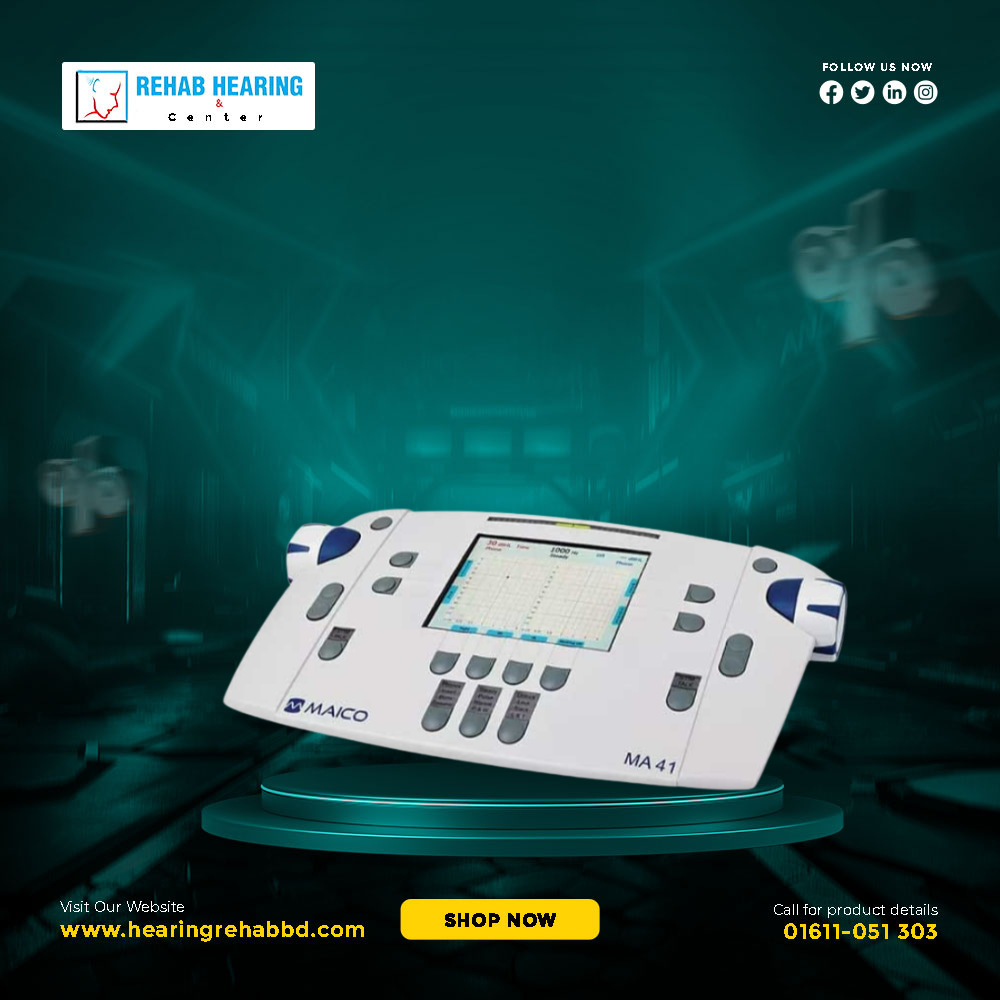

MA 41 Audiometer – Professional Portable Diagnostic System

The MA 41 Audiometer is a high-performance, stand-alone and portable audiometry device designed for ENT diagnostics, hearing aid fitting, and mobile hearing assessment services. It delivers precise tone and speech audiometric testing in a compact and user-friendly design, making it ideal for clinical and field use.

This advanced audiometer supports comprehensive hearing evaluations including air conduction (AC), bone conduction (BC), and free-field testing. It offers a wide range of stimulus options such as pure tone, warble tone, pulsed tone, narrow band noise, and speech noise for accurate diagnostic flexibility.

Speech audiometry can be performed using SD memory card, CD, or microphone input, ensuring versatile testing methods for different clinical needs. The device features a high-resolution full-color display for clear visualization and intuitive operation.

With USB PC connectivity, test results can be easily transferred for reporting and analysis. It also supports optional patient database integration and NOAH-compatible software, enabling seamless workflow in audiology clinics. The device can store over 1000 patient records and supports direct printing via an optional external printer. Communication functions such as talk forward and talk back further enhance clinical usability.

Technical Specifications

Air Conduction

  • Frequency Range: 125 Hz – 8000 Hz
  • Optional High Frequency: up to 20,000 Hz
  • Intensity Range: -10 to 120 dBHL

Bone Conduction

  • Frequency Range: 250 Hz – 8000 Hz
  • Intensity Range: -10 to 80 dBHL

Free-Field Testing

  • Intensity Range: -10 to 90 dBHL

Display

  • 15.5 cm high-resolution color screen

Physical Specifications

  • Dimensions: 34.5 cm × 20 cm × 8 cm
  • Weight: 1.5 kg

Power Supply

  • 100–240 V~, 50/60 Hz

Applications

  • ENT Clinics
  • Audiologists
  • Hearing Aid Centers
  • Mobile Audiometry Services
  • Diagnostic Hearing Evaluations

The MA 41 Audiometer combines portability, precision, and advanced audiometric capabilities, making it a reliable solution for modern professional hearing assessment and speech audiometry.
